Walking Boundary KML for Drone Survey

introduction

Every successful drone survey begins with a crucial first step: obtaining an accurate boundary KML of the land.
Historically, surveyors used chains or ropes to physically measure boundaries. However, these traditional methods often underestimated true surface area — especially in terrains with hills, valleys, or dense vegetation.

Today, modern boundary mapping with GPS and drones enables slope-corrected, true surface area estimations. A boundary may be obtained by visibly drawing a polygon on a map, but this is possible only for an open canopy where the features are obvious and visible. In physically inaccessible areas like dense vegetation or forest growth, there may be an option of manually flying the drone along the boundary, with the help of someone familiar with the terrain, and the kml may be extracted from the flight logs. However these may not be the most accurate or feasible, and are out of scope for this article.

Here, we guide you through the complete process of creating a walked boundary KML for your next drone mapping mission, to facilitate an accurate and smooth workflow.

Why Accurate Boundary Mapping Matters

Drone mapping missions rely heavily on accurate boundary KML files.
An imprecise boundary can cause:

Wasted battery and time covering unnecessary areas.
Missed sections of important land during surveying.
By walking the boundary carefully and generating a clean KML file, surveyors can ensure that the drone captures the exact area intended, maximizing operational efficiency and data quality.
Avoid privacy concerns from neighbours.
Post processing zonal statistics.

Step 1: Walk and Capture the Boundary with a GPS Device

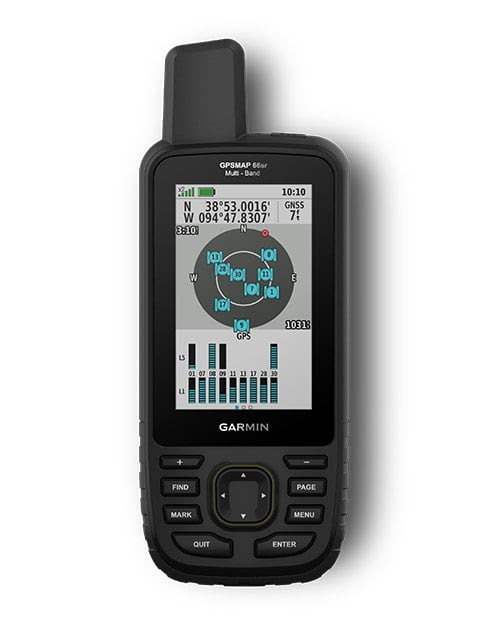

The first step is to physically walk the boundary using a handheld precision GPS device like the Garmin GPSMAP 66SR, which offers up to 6 ft accuracy.

Method:

Set the Garmin to manual recording mode:
- Go to ‘Recording’ → Turn OFF ‘Auto Start’ and ‘Auto Pause’.
Start tracking:
- Press “Map” → “Enter” to begin manual recording.
Carefully start and stop recordings to avoid data loss (Save carefully — Save/Delete options are close together).
Optional: Drop waypoints at major plot corners using the ‘Mark’ button.
- Use ‘Waypoint Averaging’ for more precision if needed.

Pro Tip:

Walking 10 acres usually takes around 35 minutes.
Your output will be a track file (for the full boundary) and multiple waypoint files (for corners).

✅ This GPS data becomes the raw material for your boundary KML generation.

Step 2: Export GPS Data via Garmin Explore App

After recording:

Sync your Garmin GPSMAP device with the Garmin Explore app (available for iPhone and Android).

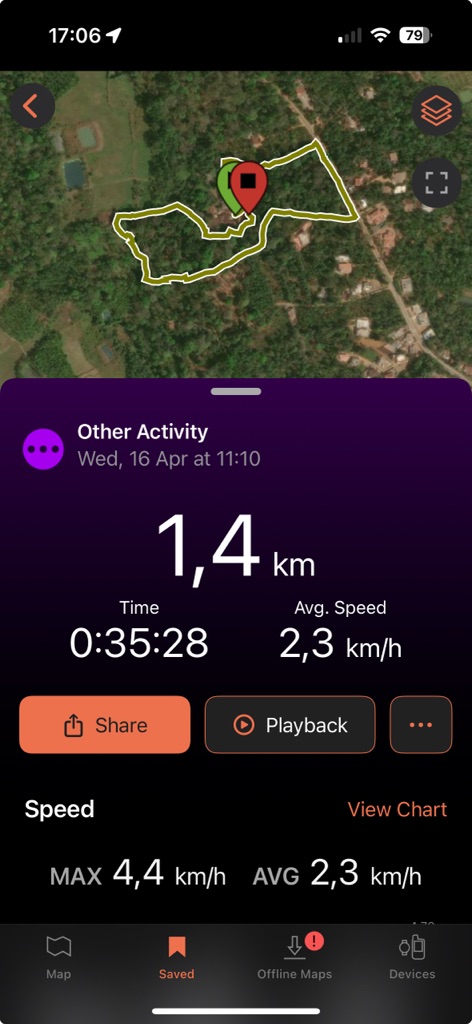

Under the ‘Saved’ tab, locate your Activities (boundary paths).
Export the track:
- Click “Share” → “Save to Files” → Choose a folder (create a Garmin Exports folder for organization).
Export waypoints:
- Group related waypoints into a ‘Collection’ → Share and save similarly.

Note: Files are exported in .GPX format — ready for KML conversion.

Step 3: Convert GPX to KML Using Map Plus App

Once you have your GPX files, use an app like Map Plus Pro to generate a clean KML boundary file for drone mission planning.

Why Map Plus?

Affordable one-time in-app purchase for multi-format export.
User-friendly interface optimized for boundary mapping for drones.
Compatible with DJI remote controllers and mission planning software.

Basic Process:

Import GPX files into Map Plus.
Trace and create the KML polygon over your walked boundary.
Export the KML file.
Transfer the KML to your DJI RC’s SD card (can connect iPhone directly to RC’s memory card using a card reader).
Import the KML into DJI Pilot 2 or other flight planning software.

✅ Now your drone mapping mission will fly exactly along the true physical boundary!

Notes on Sub-boundaries

While mapping, you may also create sub-boundaries inside your main boundary KML.
These smaller KMLs can later be used during post-processing, survey analysis, and zonal reporting.

Tip:
For the initial flight mission, a single outer KML boundary covering the full plot is sufficient. Detailed internal divisions can be created during the data analysis phase.

conclusion

Accurate boundary KML creation is the foundation of any reliable drone survey.
By walking the boundary with a precision GPS device, exporting data via Garmin Explore, and generating a clean KML using Map Plus, you ensure your drone mapping missions are precise, efficient, and ready for true area calculations, generating valuable insights.
