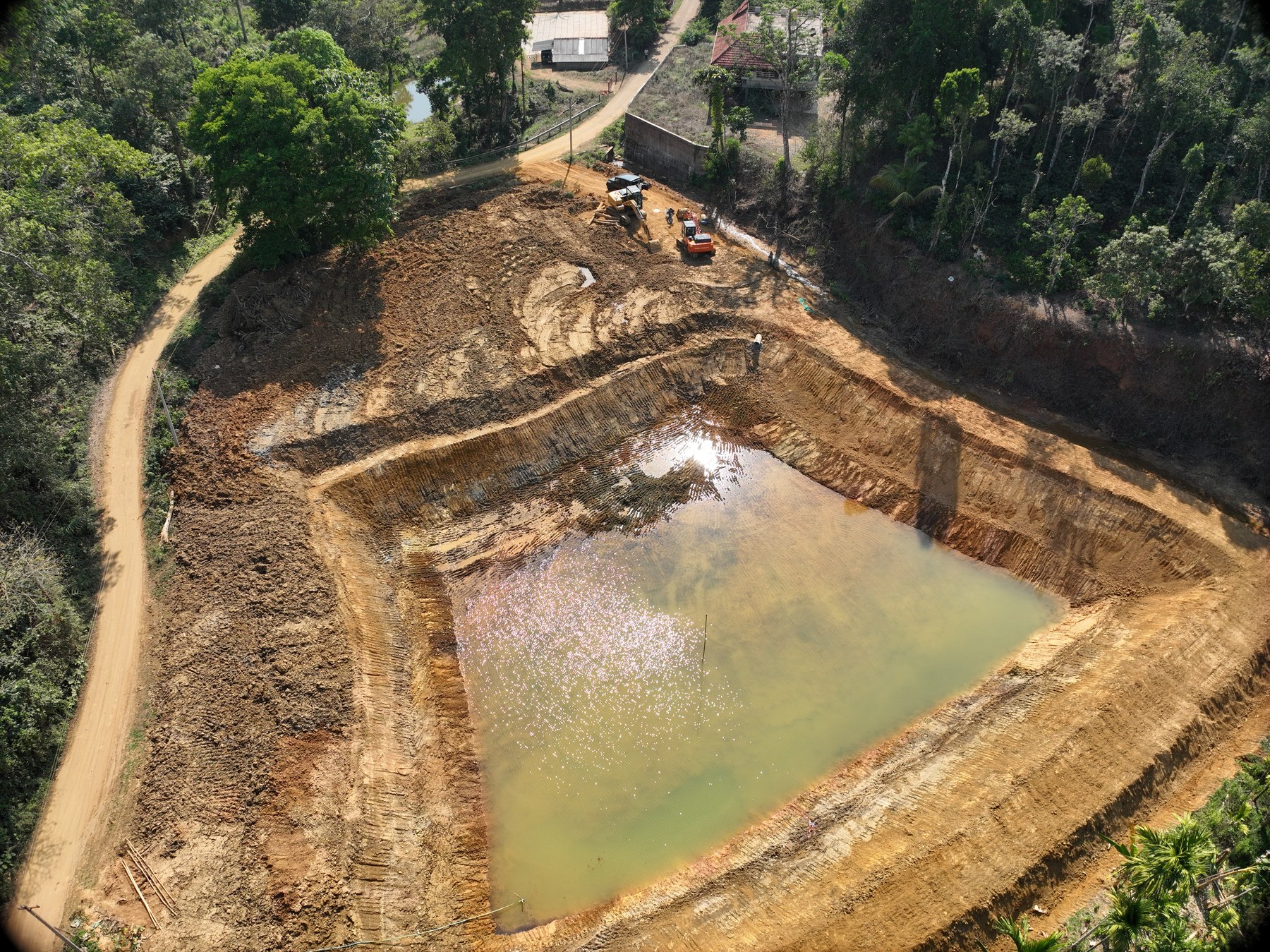

After a drone survey of a reservoir or crater, you often need to estimate water storage volume. This script computes it directly in QGIS from your DTM raster and a boundary polygon — no external tools needed.
What it does
The calculate_lake_volume.py script takes a polygon layer defining the lake or crater boundary and a DTM raster. It samples the DTM elevations inside the polygon and compares them against a reference surface derived from the polygon’s own boundary edges. The difference gives the depth at each pixel.
Output:
- Volume in cubic metres, litres, and acre-feet — written to a text report
- A depth raster (
{lake_name}_volume_map.tif) styled red → green, showing how deep each pixel is relative to the reference surface
What you need
- QGIS 3.28 or newer
numpy,rasterio(bundled with QGIS)- A polygon layer defining the lake boundary — set as the active layer
- A DTM raster loaded into QGIS with “dtm” in the layer name
- The
calculate_lake_volume.pyscript from the Terrain Analysis Pack
Steps
- Load your DTM raster into QGIS. Make sure the layer name contains “dtm”.
- Load the boundary polygon layer and click it to make it the active layer.
- Check (tick) the DTM raster in the Layers panel.
- Open Plugins → Python Console → Show Editor.
- Paste the script and click Run.
The volume report and depth raster are saved in the DTM’s directory and the raster is added to your project.
What the reference surface is
The script builds a reference surface by interpolating the DTM elevation values along the polygon boundary. This represents what the ground level would be if the lake were drained — essentially, the shoreline elevation. The volume is the space between that surface and the actual DTM values inside the polygon.
Configurable parameters
The script is self-contained and needs no changes for standard use. The polygon name is used to name the output files.
Get the script
calculate_lake_volume.py is part of the Terrain Analysis Pack — five terrain analysis scripts for QGIS at $35 USD.
